Pallet Edge Protectors: What They Are and When You Need Them

If you've ever had a strapped pallet arrive with crushed carton edges — or had a double-stacked load shift in transit — you already know what pallet edge protectors are designed to prevent. They're a simple, low-cost addition to any outbound pallet build that pays for itself the first time it keeps a freight claim off your books.

What Are Pallet Edge Protectors?

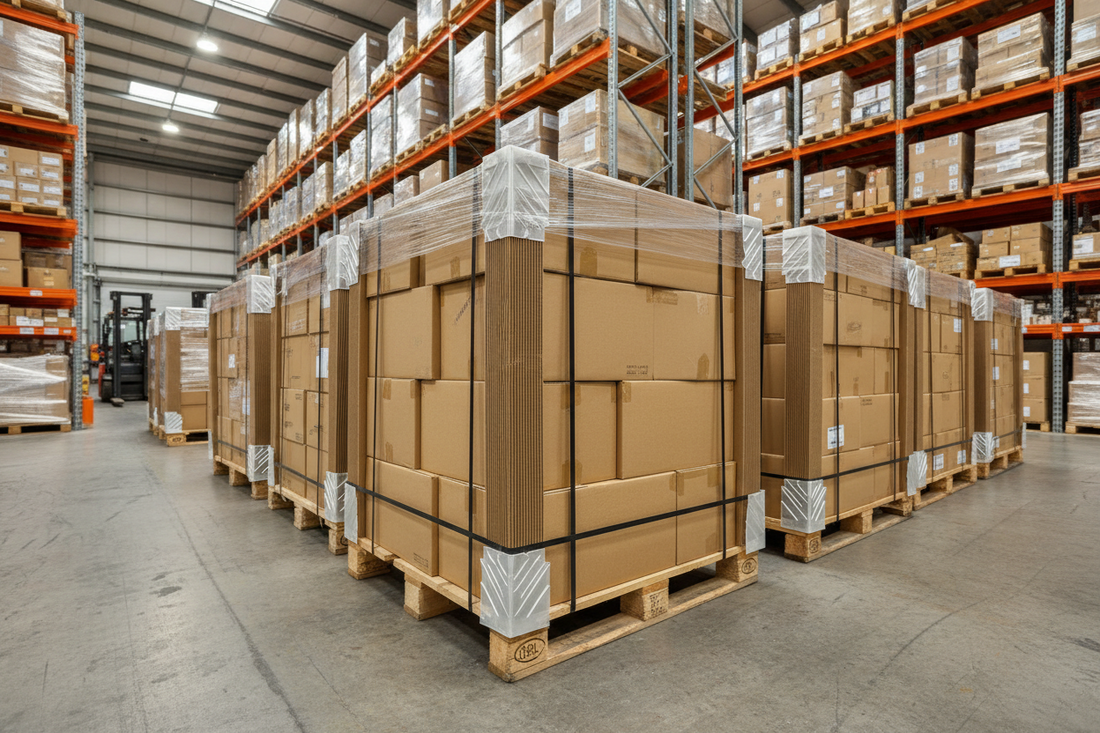

Pallet edge protectors are L-shaped guards made from compressed paperboard that run the full length of a pallet edge. They sit between your poly strapping or stretch wrap and the edges of your load, distributing pressure across the entire edge surface rather than concentrating it at a single point.

They're medium-duty by design — rigid enough to protect carton edges and stabilize loads under strap tension, without adding significant weight or bulk to the pallet build. Beyond pallet applications, they also work inside individual cartons as internal structural support for fragile or heavy product.

Edge Protectors vs. Corner Protectors — What's the Difference?

The terms get used interchangeably, but they're not the same thing. Corner protectors are short L-board pieces — typically 12" to 18" — that sit only at the corners of a pallet where straps make contact. Edge protectors run the full height of the pallet edge, providing continuous coverage from top to bottom rather than spot protection at strap points only.

For most warehouse and fulfillment applications, full-length edge protectors offer better load integrity. There's no gap in coverage between strap points, and the full-length profile adds structural rigidity to the load stack — which matters significantly when pallets are double-stacked in transit or storage.

Why Edge Protectors Matter for Your Operation

They protect carton edges from strap bite

Poly strapping under tension cuts into corrugated edges. On a loaded pallet, that concentrated pressure crushes carton corners, weakens the box structure, and can damage product inside. Edge protectors eliminate the bite by spreading strap tension across the full face of the protector rather than a single corrugated edge.

They add strength for double-stacked pallets

Stacking pallets doubles the compression load on the bottom tier. Without edge reinforcement, carton edges carry that load and can fail — especially on longer transit routes with multiple handling points. Full-length edge protectors stiffen the load column and reduce the risk of edge crush failure under stacked weight.

They stabilize loads during shipping

Strap migration is a real problem on smooth or tapered loads. Edge protectors give straps a consistent grip point at each corner, keeping load geometry locked through the full delivery cycle. A pallet that leaves your dock square should arrive square.

They work inside cartons too

Edge protectors aren't limited to pallet applications. The same L-profile works as internal carton support for heavy or fragile products — added to the interior corners of a box before closing to reinforce the structure and reduce edge crush during handling.

When Your Operation Needs Them

Not every pallet needs edge protectors, but a few scenarios make them close to mandatory:

• High-value outbound freight — The cost of a damaged pallet claim exceeds a full case of edge protectors by a wide margin. If the load is worth protecting, protect it.
• Double-stacked storage or transit — Any time pallets are stacked, the bottom tier needs edge reinforcement to carry the added compression load reliably.
• Client-facing fulfillment — 3PLs and fulfillment operations where clients track damage rates should be running edge protectors consistently. One chargeback conversation with a client costs more than a year of edge protectors.
• Strapped loads without stretch wrap — Stretch wrap distributes strap pressure somewhat on its own. A bare-strapped pallet with no wrap has nothing between the strap and the carton edge.

Buying Edge Protectors at Wholesale Volume

Edge protectors are a consumable. If you're palletizing daily, you'll move through them fast, and buying in small quantities from a general supplier is expensive per unit. Wholesale case pricing is the only way to make the per-pallet math work at volume.

What to look for in a supplier:

• Consistent in-stock availability — Running out of edge protectors mid-shift creates a real operational problem. You need a supplier who carries depth, not just a catalog SKU.
• Paperboard quality — Rigidity varies between manufacturers. A flimsy edge protector under a loaded strap provides minimal protection.
• Local sourcing — Edge protectors are bulky and heavy relative to their unit value. Freight costs from a national supplier eat into your per-unit savings quickly.

Pair your edge protector order with poly strapping and stretch wrap to consolidate your pallet consumables into a single order and keep inbound freight costs efficient.

Edge Protectors In Stock at BOXT

BOXT Packaging stocks medium-duty paperboard edge protectors with same-day pickup in Spanish Fork and next-day local freight across the Wasatch Front. No waiting on a national backorder or paying freight on a bulky case from across the country.

Shop edge protectors here or contact us if you want to talk volume pricing or aren't sure what quantity fits your operation.
